Industrial Hot Air Circulating Ovens: Applications, Features, and Specifications #
Industrial hot air circulating ovens are essential equipment across a wide range of industries, providing reliable solutions for baking, drying, curing, tempering, preheating, and experimental processes. These ovens are designed to deliver uniform temperature distribution and precise control, making them suitable for demanding industrial environments.
Applications #
Industrial ovens are widely used in the following sectors:
- Electronics
- Electrical
- Electroplating
- Rubber
- Plastics
- Metalworking
- Chemical processing
- Food production
- Printing
- Pharmaceuticals
- Roasted tea
- Paint and coatings
- General industrial baking, drying, curing, tempering, preheating, and laboratory experiments
Key Features #
- Hot Air Circulation: Utilizes a hot air circulation method to ensure even and accurate temperature distribution throughout the oven chamber.
- High Temperature Capability: Supports temperatures up to 200°C, accommodating a variety of industrial processes.
- Customizable Interior: The oven’s interior material can be tailored to meet specific requirements.
- Safety Controls: Equipped with an over-temperature controller to prevent overheating and ensure operational safety.
Model Range and Technical Specifications #
A variety of models are available to suit different capacity and process needs. Below is a summary of the main technical specifications for each model:
| Model | Internal Dimensions (W x D x H, cm) | External Size (W x D x H, cm) | Voltage (AC 50/60Hz) | Electric Power (kW) | Shelf Layers |
|---|---|---|---|---|---|
| LEO-LS-1 | 45 x 40 x 40 | 70 x 60 x 100 | 110V or 220V | 2 | 4 |
| LEO-LS-2 | 60 x 50 x 50 | 88 x 70 x 112 | 110V or 220V | 3 | 5 |
| LEO-LS-3 | 60 x 50 x 90 | 88 x 70 x 155 | 220V or 380V | 4 | 8 |
| LEO-LS-4 | 80 x 60 x 100 | 108 x 80 x 164 | 220V or 380V | 5 | 10 |
| LEO-LS-5 | 100 x 60 x 100 | 132 x 80 x 174 | 220V or 380V | 7 | 10 |
| LEO-LS-6 | 120 x 60 x 100 | 150 x 80 x 174 | 220V or 380V | 8 | 10 |
| LEO-LS-7 | 140 x 60 x 120 | 175 x 80 x 194 | 220V or 380V | 11 | 12 |
| LEO-LS-8 | 160 x 80 x 140 | 200 x 100 x 220 | 220V or 380V | 14 | 14 |
| LEO-LS-9 | 180 x 100 x 140 | 220 x 120 x 220 | 220V or 380V | 19 | 14 |
| LEO-LS-10 | 200 x 120 x 160 | 240 x 140 x 240 | 220V or 380V | 25 | 16 |
Product Gallery #

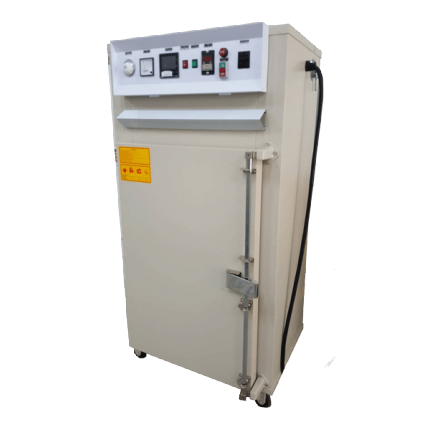

Industrial Oven-1

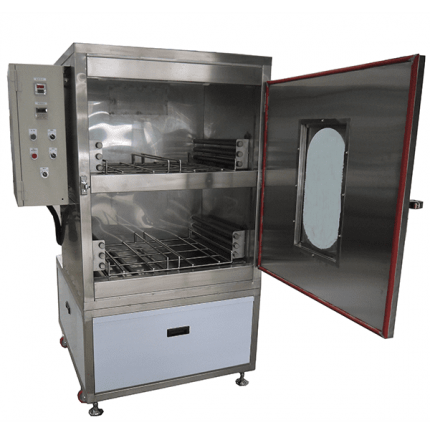

Industrial Oven-2

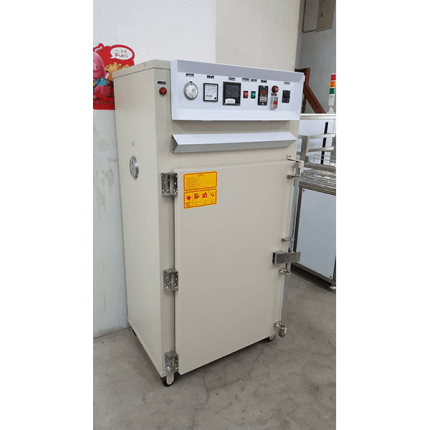

Industrial Oven-3

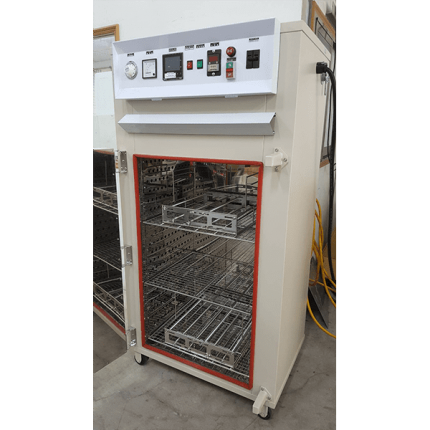

Industrial Oven-4

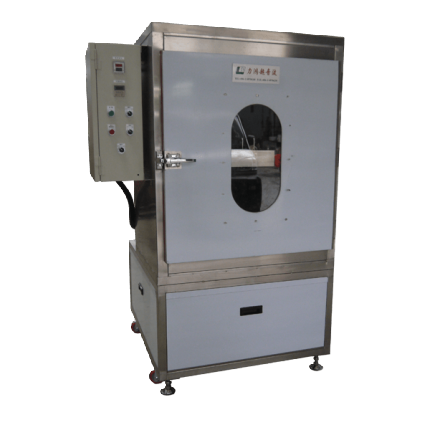

Industrial Oven-5Contact Information #
- Phone: +886-2-89706260
- Fax: +886-2-89706250
- E-mail: leo@leo-sonic.com
- Address: NO. 5, LINE 19, XINXING STR. SHU-LIN DIST. NEW TAIPEI CITY, TAIWAN, R.O.C.
For further details or to discuss specific requirements, please reach out via the contact information above.
